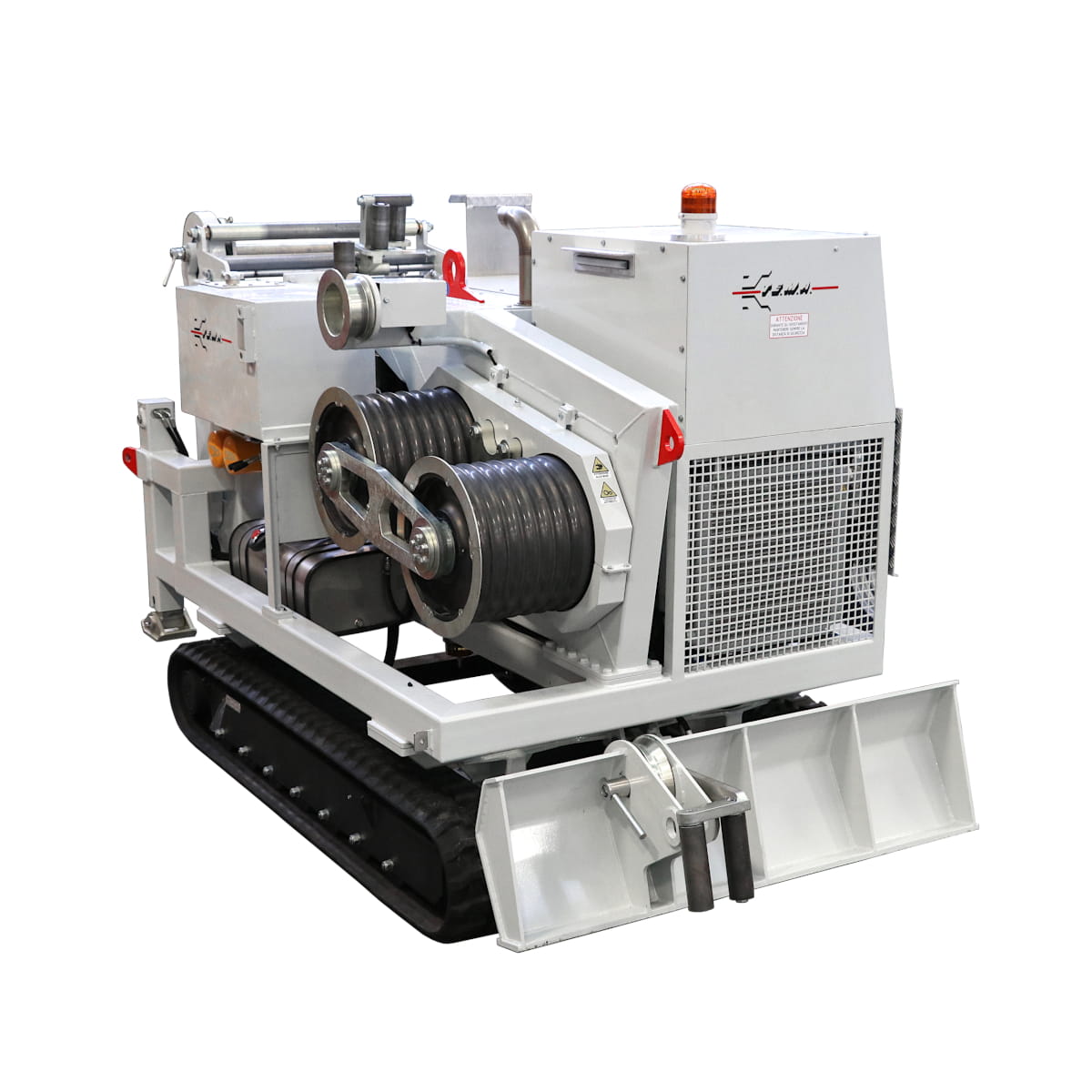

Digital self-propelled hydraulic puller 70kN
Aprašymas
Standard features
• 1 hydraulic circuit with negative brake system
• Control panel equipped with LCD touch screen 7” display which includes:
preset for the maximum pulling force and instant indication, countermeter,
speed indicator and worked hours.
• USB output for pulling data recording
• Radio control unit
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Tracked undercarriage
• Balanced top lifting point and anchoring attachments
Optional equipment
06-PW Front pulley roller guided device for underground cabling
07-PW Hydraulic power take-off for remote reel-winder
28-PW T4L remote monitoring system with GPS geolocation
Special features upon request
05-PW Rope holder clamp (hydraulic)
13-PW Pre-heater (up to -30°C)
20-PW Dynamic speed pulling force control
36-PW Engine emission standard Stage IIIA – (85 hp) 63,5 kW
Performance
Max pull 70 kN
Max speed 5 km/h
Speed at max pull 1 km/h
Speed at 50 kN 2 km/h
Characteristics
Bull-wheels diameter 400 mm
Max rope diameter 16 mm
Weight 3250 kg
Engine
Diesel (73 Hp) 54 kW
Cooling Liquid
Emission standard (UE)2016/1628 Stage V
