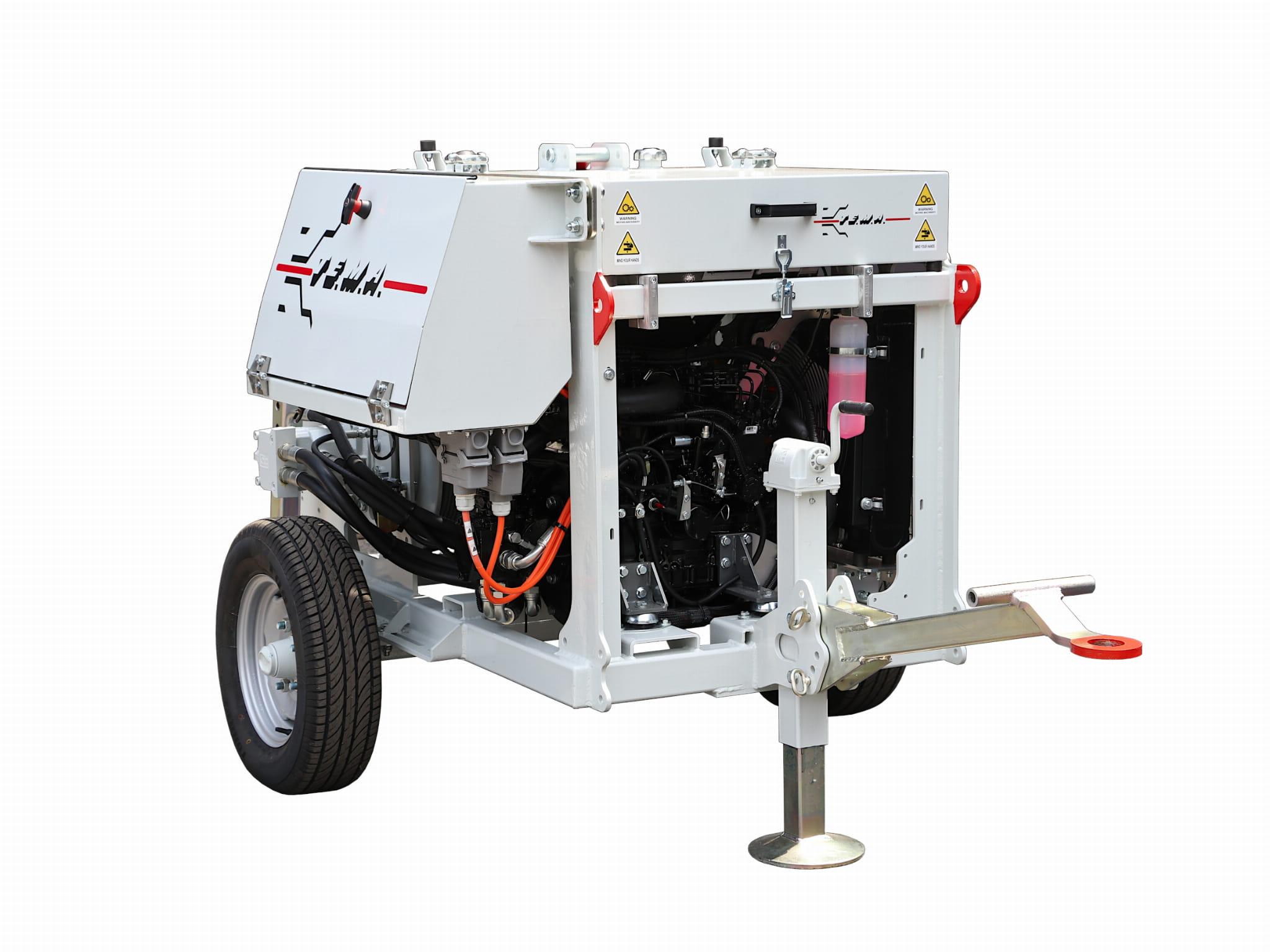

Hydraulic front drum winch 30 kN capacity
- paklausti apie kainą
-
paklauskite apie produktą
-
rekomenduoti draugui
Aprašymas
Performance
Max pull 30 kN
Max speed 65 m/min
Speed at max pull 18 m/min
Characteristics

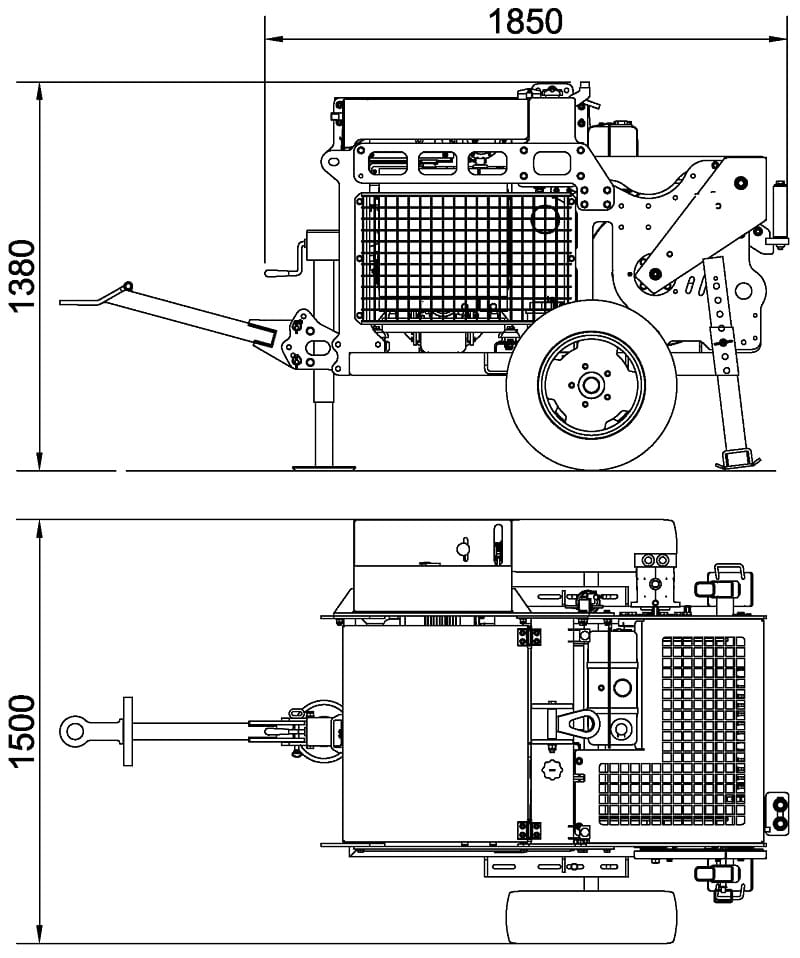

Drum dimensions ø 350/510 x 620 mm
Drum capacity 350 m rope Ø 13 mm
Weight without rope 840 kg
Engine
Diesel (25 hp) 19 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
• 1 hydraulic circuit with negative brake system

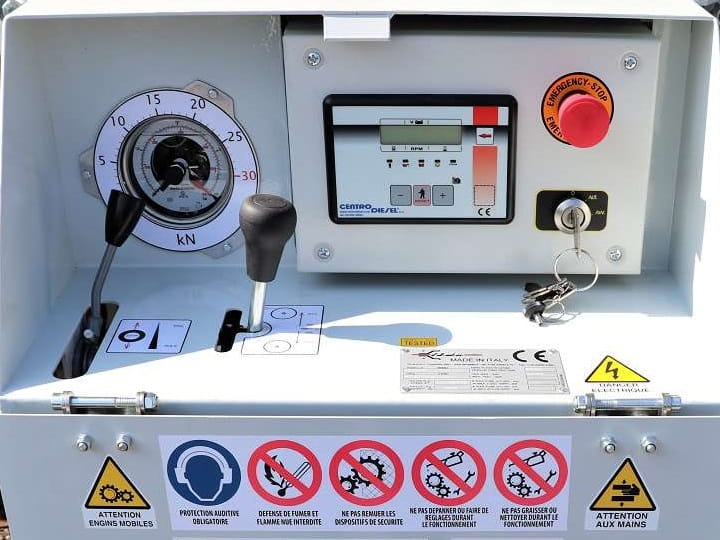

• 1 dynamometer for direct reading of pulling value with load-limiter device
• Independent mechanical stabilizers (30 kg)
• Rigid axle with tyres for towing up to 30 km/h (76 kg)
• Balanced top lifting point and anchoring attachments
Optional equipment
11-PW Road trailer kit (66 kg)
14-PW Large groove capstan 10 kN Capacity with rope-holder clamp (41 kg)
Special features upon request
03-PW Remote control unit c/w console 5 m cable (22 kg)
04-PW Radio control unit (10 kg)
13-PW Pre-heater (up to -30°C) (45 kg)
