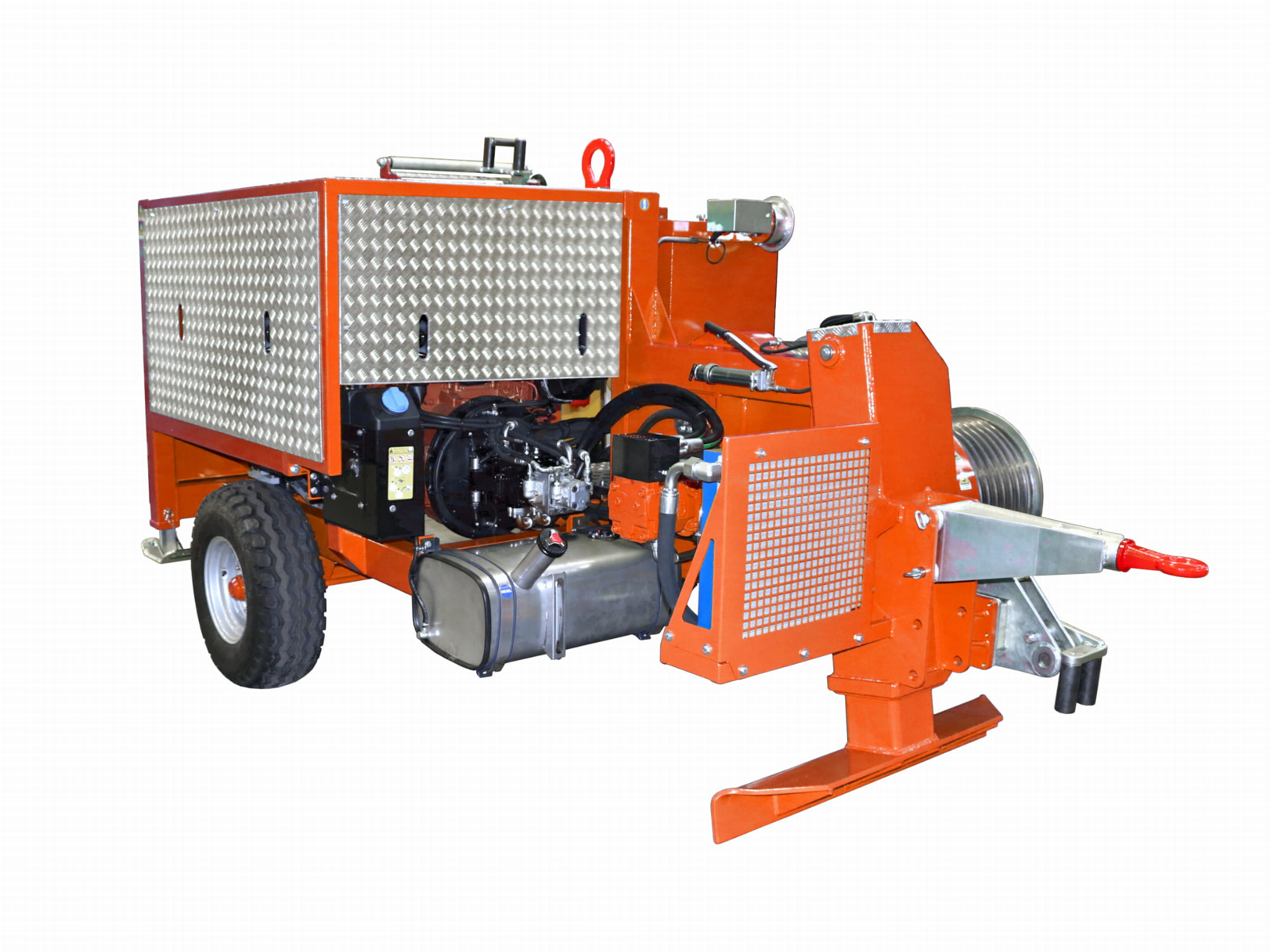

Hydraulic puller 100 kN capacity for single rope pulling on overhead stringing operations
- paklausti apie kainą
-
paklauskite apie produktą
-
rekomenduoti draugui
Aprašymas
Performance
Max pull 100 kN
Max speed 5 km/h
Speed at max pull 2,1 km/h
Characteristics
Bull-wheels diameter 550 mm
Max rope diameter 22 mm
Weight 4250 kg
Engine
Diesel (143 hp) 105 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Remote control unit c/w console 5 m cable
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PW Preset for digital data recorder, counter-meter and speedometer
04-PW Remote control unit
05-PW Rope holder clamp (hydraulic)
07-PW Hydraulic power take-off for remote reel-winder
Special features upon request
13-PW Pre-heater (up to -30°C)
18-PW Counter-meter device
20-PW Dynamic speed pulling force control
