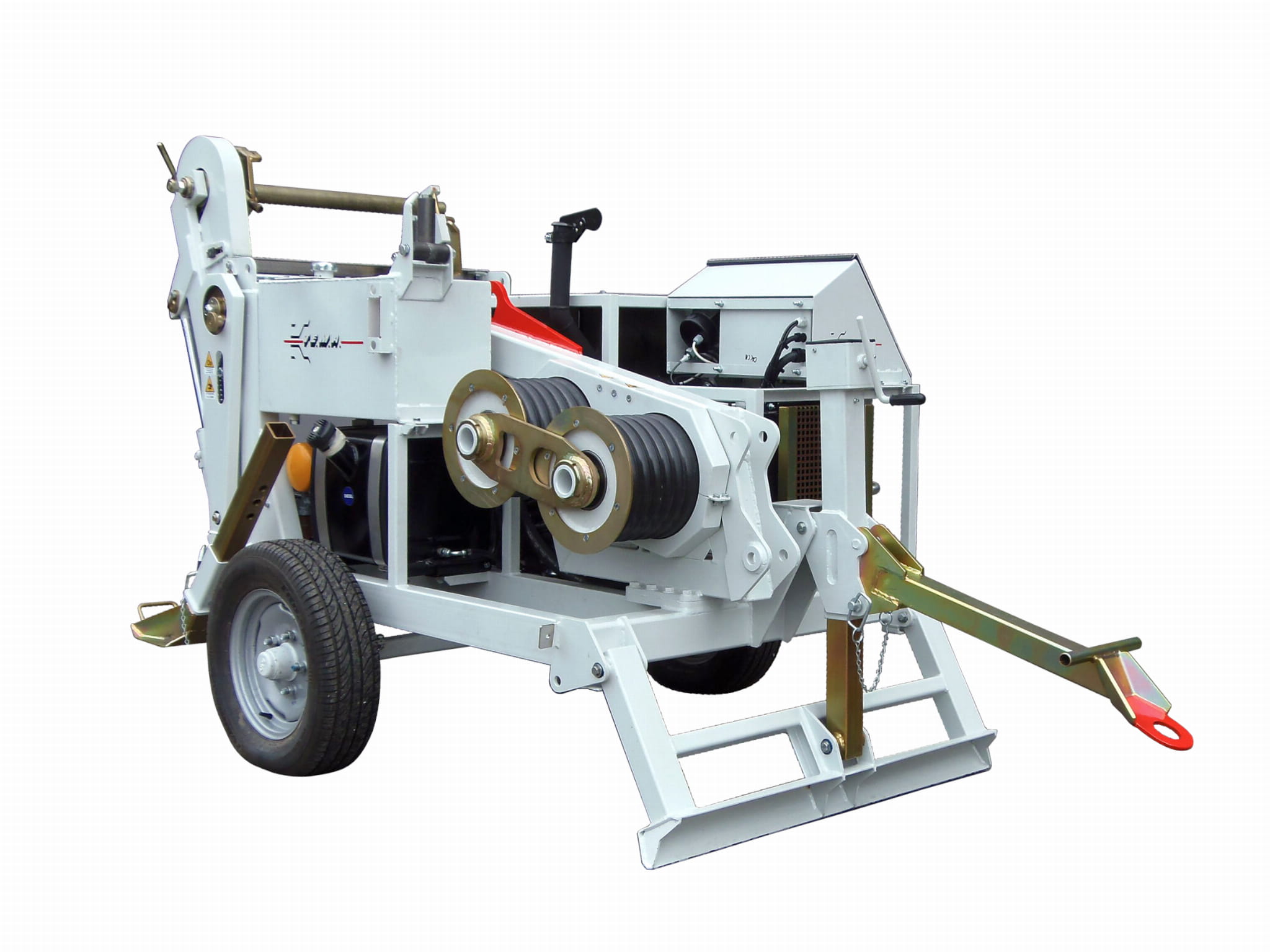

Hydraulic puller 25 kN capacity for single rope pulling on overhead stringing operations as well as underground cabling
- paklausti apie kainą
-
paklauskite apie produktą
-
rekomenduoti draugui
Aprašymas
Performance
Max pull 25 kN
Max speed 5 km/h
Speed at max pull 1 km/h
Characteristics
Bull-wheels diameter 250 mm
Max rope diameter 10 mm
Weight 950 kg
Engine
Diesel (25 hp) 18,6 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter device
• Thermally treated steel bull-wheels
• Automatic reel-winder suitable for steel reel 1100÷1400 mm
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PW Preset for digital data recorder, counter-meter and speedometer
11-PW Road trailer kit
18-PW Digital counter-meter device
