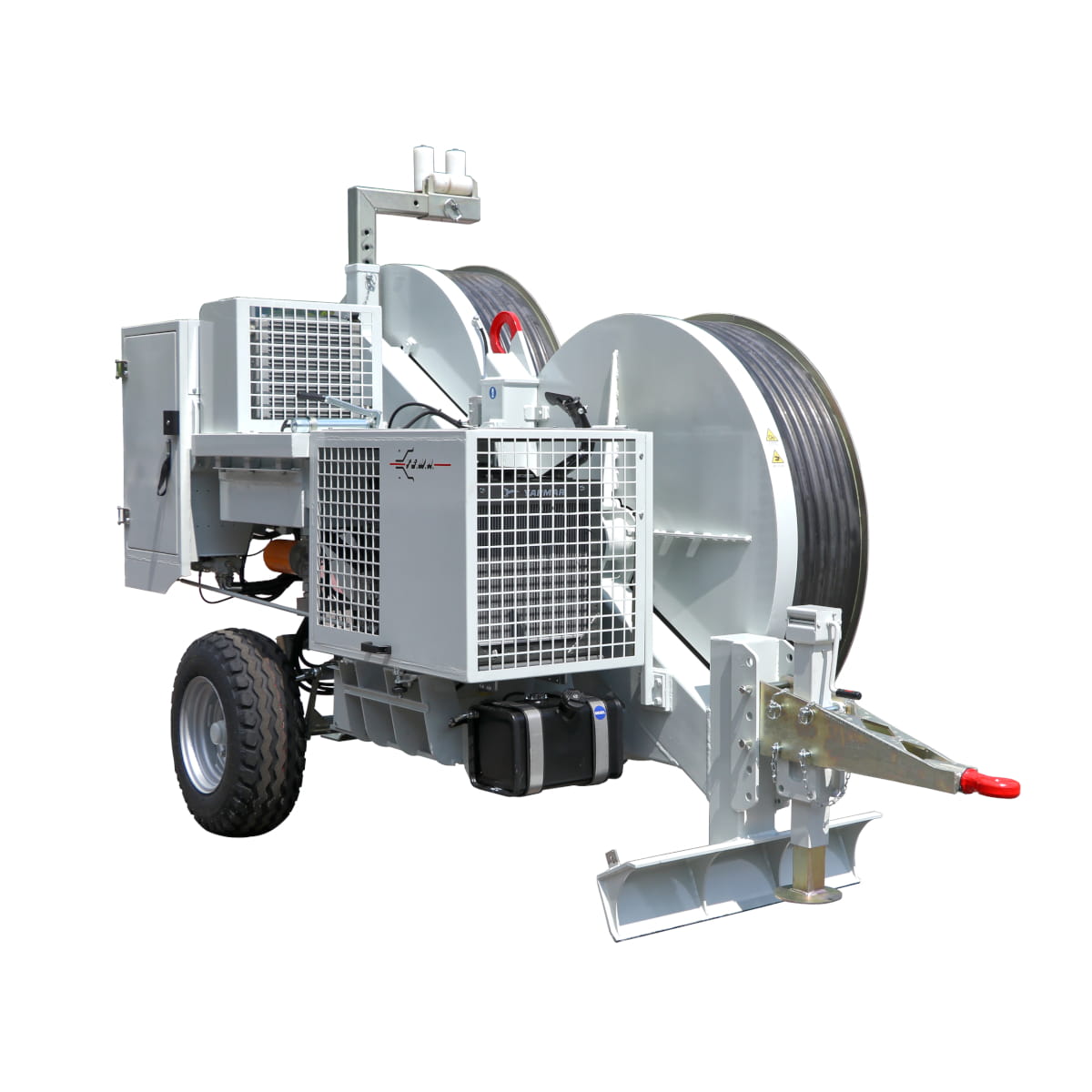

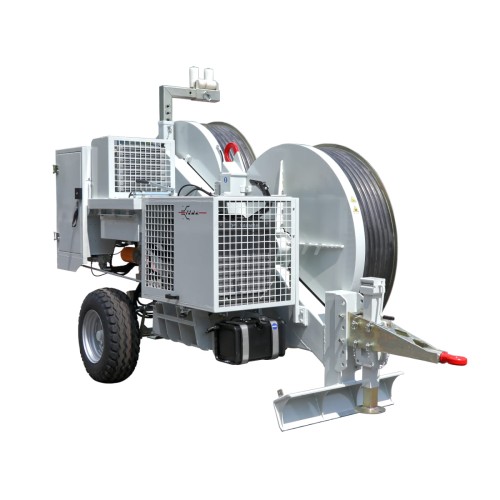

Hydraulic puller-tensioner 25 kN
- paklausti apie kainą
-
paklauskite apie produktą
-
rekomenduoti draugui
Aprašymas
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter
device (puller-mode)
• 1 counter-meter device
• 1 sets of quick-release hydraulic connectors to drive up to 1 hydraulic
driven reel-stand or 1 reel-winder unit
• Thermally treated steel adherence wheels
• Mechanical stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and speedometer
03-PT Remote control unit c/w console 5 m cable
04-PT Radio control unit
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable nylon liners
18-PT Multiple connection preset
Special features upon request
02-PT Dynamic speed pulling force control
20-PT Pre-heater (up to -30°C)
29-PT Front hydraulic stabilizer
42-PT Engine emission standard Stage IIIA - (36,5 hp) 27 kW
Puller performance
Max pull 25 kN
Max speed 5 km/h
Speed at max pull 2 km/h
Tensioner performance
Max tension 25 kN
Max speed 5 km/h
Characteristics
Adherence-wheels diameter 1500 mm
Max conductor diameter 40 mm
Max rope diameter 18 mm
Weight 2850 kg
Engine
Diesel (36,5 hp) 27 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
