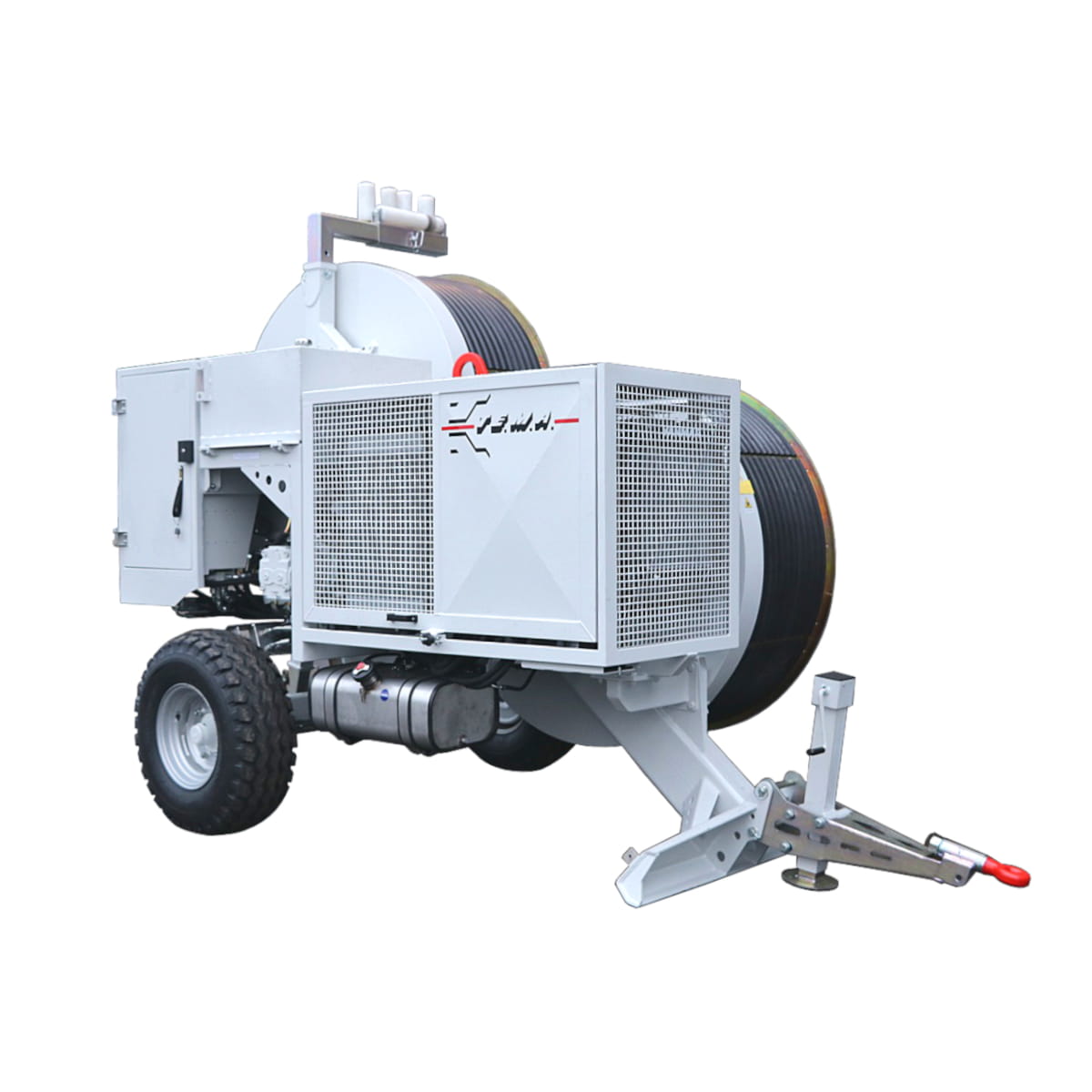

Hydraulic tensioner-puller 100 kN
- paklausti apie kainą
-
paklauskite apie produktą
-
rekomenduoti draugui
Aprašymas
Standard features
• 1 hydraulic circuit with negative brake system
• 1 dynamometer for direct reading of pulling value with load-limiter
device (puller – mode)
• 1 counter-meter device
• 2 sets of quick-release hydraulic connectors to drive up to 2
hydraulic driven reel-stands or 1 reel-winder unit
• Adherence wheels with interchangeable nylon liners
• Gear box (2 speed)
• Independent mechanical stabilizers
• Rigid axle with tyres for towing up to 30 km/h
• Balanced top lifting point and anchoring attachments
Optional equipment
01-PT Preset for digital data recorder, counter-meter and
speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
18-PT Multiple connection preset
Special features upon request
20-PT Pre-heater (up to -30°C)
42-PT Engine emission standard Stage IIIA - (36,5 hp) 27 kW
Tensioner performance
Max tension 100 kN
Max speed 5 km/h
Pull-back performance
Max pull 100 kN
Max speed 0,6 km/h
Characteristics
Adherence-wheels diameter 1500 mm
Also available with diameter 1200 or 1800 mm
Max conductor diameter 40 mm
Weight 4100 kg
Engine
Diesel (36,5 hp) 27 kW
Cooling Liquid
Emission standard - (UE)2016/1628 Stage V
